VLX 100 Pivot Door

VLX 100 Pivot Door in San Jose, CA | Westlight Windows San Jose

The VLX 100 Pivot Door is a heavy-duty aluminum door that turns on a vertical center axis instead of traditional side hinges. It’s built for homeowners and architects in San Jose who want a true architectural statement: oversized glass, clean sightlines, and a door that feels substantial every time you push it open. Westlight Windows San Jose is an authorized ViewLux installation partner, which means you get the genuine product, factory-backed warranty coverage, and an install team that sets these doors level, plumb, and square. Call (669) 333-7786 to talk specs, pricing, or lead times with someone who actually installs them.

Call (669) 333-7786

Product Overview – VLX 100 Pivot Door

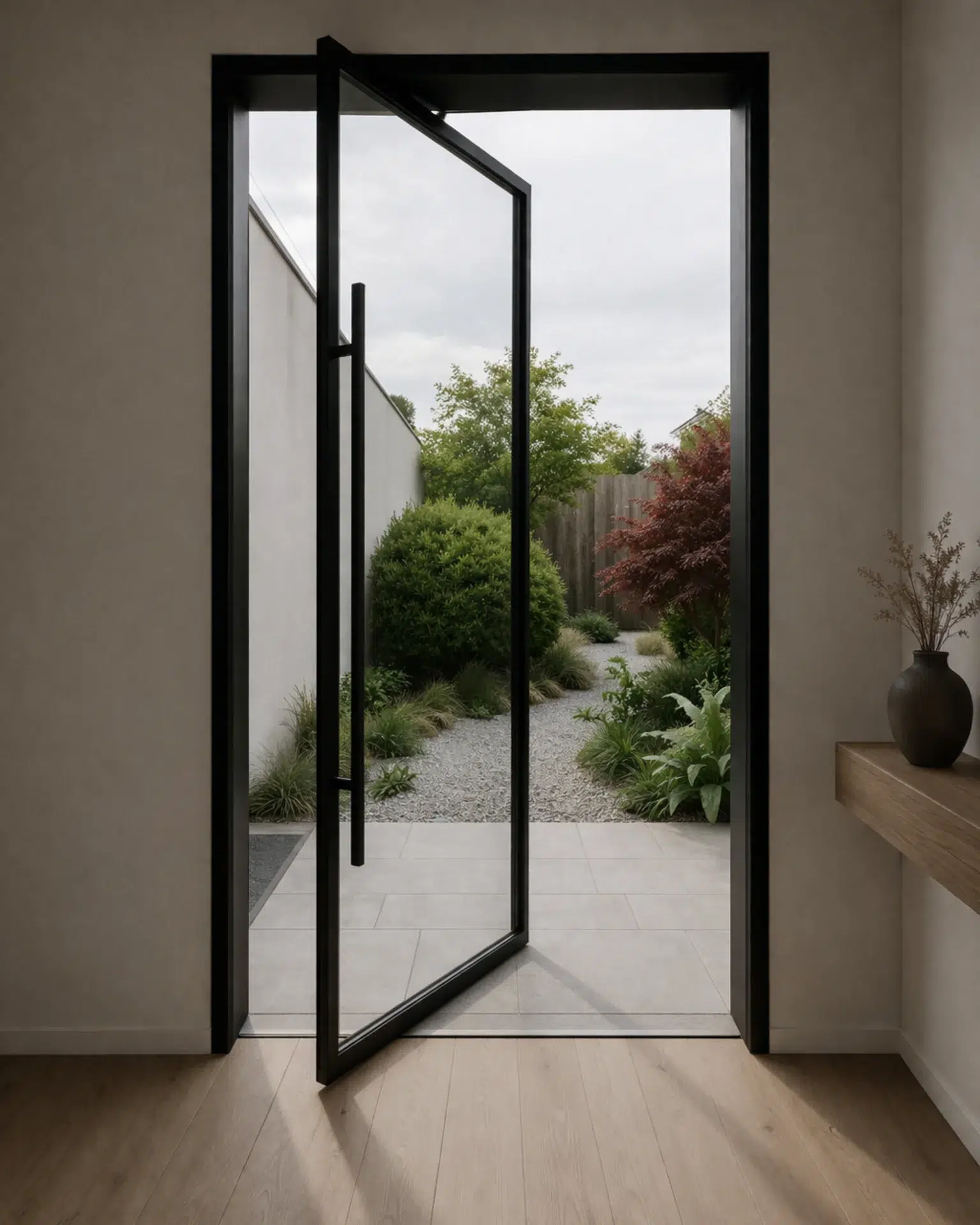

The VLX 100 is what happens when a door stops being just an opening and becomes the focal point of a room. It rotates on a vertical center axis, so the pivot point sits somewhere along the width of the panel rather than at the edge. That simple change in geometry does two things. First, it lets a single slab carry far more glass area than a hinged door ever could, because the load transfers through the pivot mechanism and the reinforced aluminum frame instead of pulling on side hinges. Second, it creates a visual effect that’s hard to describe until you stand in front of one, the door swings with a weight and ease that feels engineered rather than just assembled.

We install these in San Jose across a range of home styles. Modern builds in Willow Glen and Almaden Valley lean into the full-height glass and matte black finishes. Eichler-inspired homes and mid-century remodels around West San Jose use the VLX 100 to open up a back wall without disrupting the clean horizontal lines those houses are known for. Even traditional Mediterranean-style homes in the Rose Garden neighborhood benefit from a pivot door at the entry, where the oversized panel reads as sculpture against stucco.

The frame is extruded aluminum with a 0.098-inch wall thickness, which is thick enough to resist racking and warping over decades of San Jose sun exposure. Aluminum doesn’t swell with moisture like wood, doesn’t rust like steel, and doesn’t need the ongoing maintenance that both do. The profile width is 2.56 inches, which gives the door a slim contemporary look while still hiding the pivot hardware and weatherstripping cleanly.

Buyers choose the VLX 100 for one of three reasons. They want an oversized entry that makes a statement the moment someone walks up. They want a way to open an entire wall of glass onto a patio or courtyard. Or they’ve lived with a warped, sticking, or drafty door for years and want something that will work the same way in 2035 as it did on install day. That last group is the one we hear from most often, because San Jose’s dry summers and rainy winters are hard on wood doors, and people get tired of fixing them.

Technical Specifications

Here’s what the VLX 100 brings to the table, in straightforward terms. If you’ve been comparing pivot doors across manufacturers, these are the numbers that matter when you’re deciding whether this door will work for your opening.

• Wall thickness: 0.098 inches of extruded aluminum. This is a heavy-duty profile, not the thin stuff you see in big-box sliding doors.
• Profile width: 2.56 inches. Slim enough for a modern look, deep enough to house the pivot mechanism and a proper thermal break.
• Maximum span: up to 60 inches wide by 120 inches tall as a single panel. That’s a 5-foot by 10-foot slab of glass and aluminum, which covers most entry and patio applications in San Jose homes.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated. Mix and match depending on privacy, energy, and safety needs.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood. Powder-coated and anodized finishes that hold color under direct sun.
• Glass type: Tempered as standard for safety. Laminated available for impact resistance and added security.

Performance Features

Aluminum is a great structural material and a terrible insulator. The difference between a good aluminum door and a bad one comes down to engineering, and the VLX 100 gets the engineering right.

Thermal Efficiency

The VLX 100 uses thermal break technology to separate the interior and exterior aluminum faces, which stops heat from conducting straight through the frame. It’s NFRC-rated, so you can see real energy performance numbers rather than marketing claims. In San Jose’s hot summers, that thermal break is the difference between a door frame that stays cool to the touch and one that radiates heat into your entryway. Pair it with Low-E glass and you’ll notice the difference on your cooling bill.

Acoustic Performance

Laminated glass cuts sound transmission noticeably, which matters if you live near Highway 87, 280, or any of San Jose’s busier corridors. The layered interlayer in laminated glass dampens vibration, and the heavy aluminum frame seals tight enough to stop sound from sneaking around the edges. We’ve had clients in Japantown and downtown San Jose tell us the traffic noise dropped to a background hum after swapping a wood door for the VLX 100.

Airtightness & Weather Seal

Every perimeter joint on this door gets AAMA 812 low-expansion foam sealant during installation. That’s the standard Westlight Windows San Jose follows on every pivot door we set. Airtightness matters year-round in San Jose, because it stops conditioned air from leaking out in summer and winter alike. It’s also the first line of defense against dust, insects, and that fine silt that blows through the valley when the winds pick up.

Waterproofing

San Jose gets most of its rain between November and March, and when it rains, it can come hard. The VLX 100’s sill design and perimeter sealing keep water on the outside where it belongs. We install to AAMA 2400/2410 standards, which covers proper flashing, drainage, and sealant application. No shortcuts on the water management details, because that’s where door failures come from, not the door itself.

Wind Resistance

The VLX 100 is wind-load rated for local climate requirements, which matters in parts of San Jose where wind funnels down through the hills and hits homes hard. A pivot door carries wind load differently than a hinged door, so the pivot hardware and frame need to be engineered for it. This one is. If you’re in a more exposed area, like parts of Evergreen or the eastern foothills, we’ll spec the door accordingly.

Security & Hardware

Oversized pivot doors need serious hardware because all the weight rides on the pivot mechanism. The VLX 100 ships with hardware rated for the panel size and weight, not generic door parts. Laminated glass adds a layer of impact resistance, and the multi-point locking options give you more than a single latch point. A door this big should feel secure when it’s locked, and this one does.

Color & Glass Options

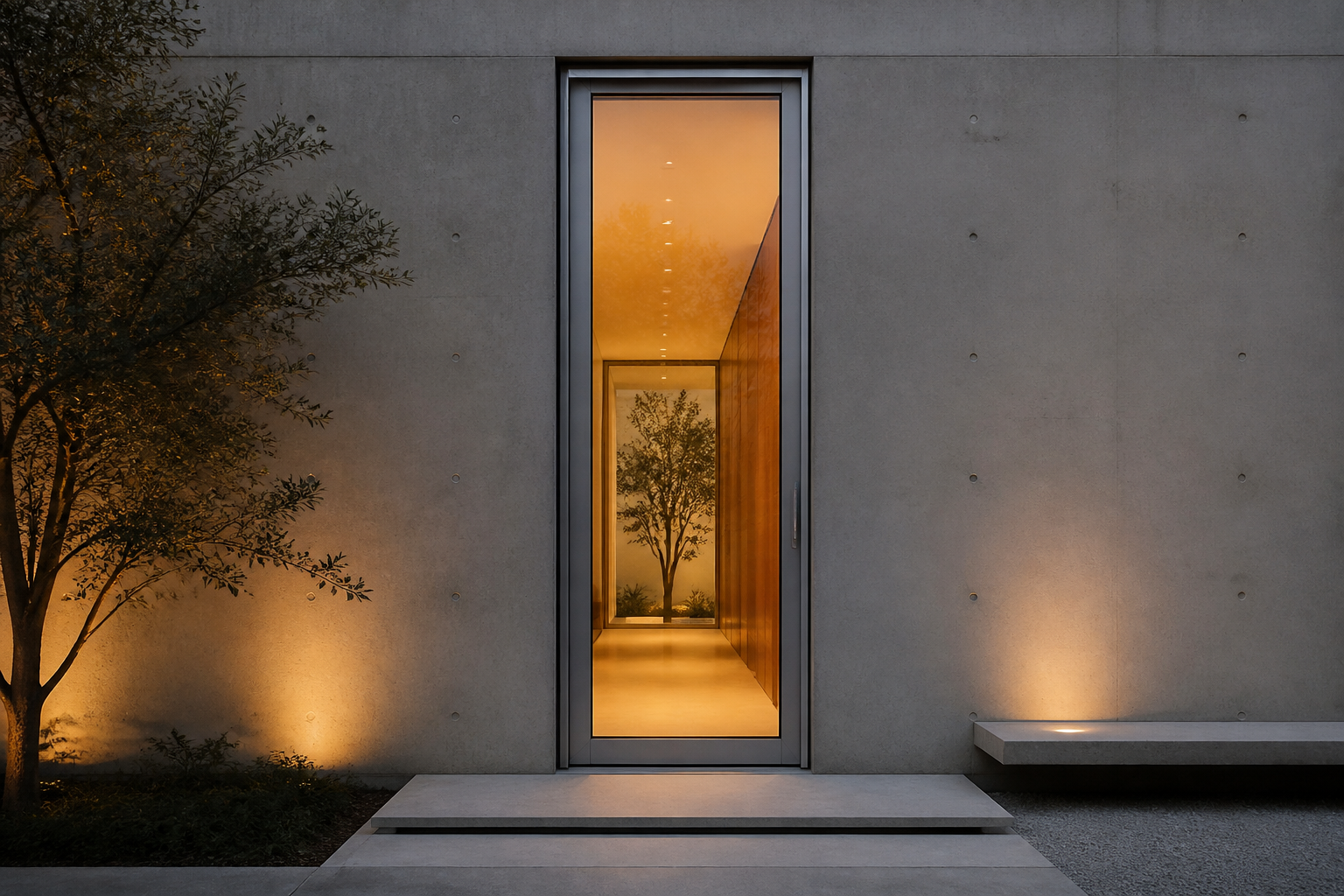

The VLX 100 comes in six finishes, and the right one depends on your home’s architecture and the look you’re after. Premium Black is the most requested finish in San Jose right now, especially on modern homes and remodels, because it makes the glass read as a dark void against the siding. Pure White works on homes with lighter exterior palettes or where you want the door to blend rather than stand out. Anodized Silver has that classic aluminum look that suits industrial-style lofts and contemporary homes. Bronze is warmer than black and pairs well with natural wood siding and stone. Champagne is a softer metallic that reads modern without being stark. Teak Wood is a wood-grain finish on aluminum, so you get the warmth of wood without the rot, warping, and annual repainting that wood doors in San Jose demand.

For glass, the choice comes down to three questions: how much privacy do you need, how much sun does the door face, and do you want safety-glass peace of mind or true impact resistance. Frosted and obscure glass give privacy while still letting light through, which works well for entry doors close to the street in neighborhoods like Naglee Park or Downtown. Low-E glass reflects heat, which is our standard recommendation for west-facing doors that bake in the afternoon. Tempered glass is safety glass and comes standard. Laminated glass holds together if it breaks, which adds security and cuts sound. Most clients pick Low-E tempered as a baseline and add lamination if noise or security are concerns.

Installation by Westlight Windows San Jose in San Jose

A pivot door is only as good as its installation. That’s not a slogan, it’s a reality we deal with regularly. We’ve been called out to homes in San Jose where a pivot door was installed by a general contractor who didn’t understand how pivot mechanisms transfer load, and the result was a door that sagged, scraped, or wouldn’t close cleanly within a year. Improper installation voids the manufacturer warranty on the ViewLux VLX 100, which means a bad install is a double loss: a door that doesn’t work right and no warranty coverage to fix it.

Westlight Windows San Jose installs the VLX 100 according to AAMA 2400/2410 standards, which are the recognized installation guidelines for windows and doors in residential and light commercial construction. That covers everything from rough opening preparation to flashing, shimming, anchoring, and sealing. We check the rough opening before the door ever arrives, because an out-of-square opening will fight a pivot door forever. We set the frame level, plumb, and square, using shims and anchoring per ViewLux’s installation requirements, and we verify the pivot points are aligned so the door swings true.

Every perimeter joint gets AAMA 812 low-expansion foam sealant. This is a requirement for warranty compliance and for real-world performance. Low-expansion foam fills gaps completely without pushing the frame out of alignment, and it seals against air and water intrusion. After the door is set and sealed, we run a water test to confirm no leaks around the sill or side jambs. Then we walk you through operation, hardware adjustment, and maintenance, and we clean up the job site before we leave.

San Jose’s climate doesn’t stress doors the way coastal fog or mountain snow do, but it does have its own challenges. Months of dry heat, occasional hard rain, and wide temperature swings between day and night mean the sealant and weatherstripping have to be right from day one. Local building codes also matter, and we make sure the door meets San Jose’s energy and structural requirements before we start cutting anything open.

Frequently Asked Questions – VLX 100 Pivot Door

Get a Quote – VLX 100 Pivot Door in San Jose

If you’re considering a pivot door for your San Jose home, the next step is simple: call Westlight Windows San Jose at (669) 333-7786 to schedule a free on-site measurement. We’ll confirm your rough opening, talk through glass and finish options that fit your home and budget, and give you a written line-item quote. No pressure, no vague pricing. Just your numbers, on paper.

Written by the team at Westlight Windows San Jose, authorized ViewLux installation partner serving San Jose, CA.
