VLX 138 Panoramic Sliding Door

VLX 138 Panoramic Sliding Door in San Jose, CA | Westlight Windows San Jose

The VLX 138 Panoramic Sliding Door is what San Jose homeowners choose when they want a wall of glass that actually performs. Built on a 0.138-inch wall profile, this luxury large-span slider delivers expansive uninterrupted views with an ultra-smooth glide on stainless bearings. Westlight Windows San Jose is an authorized ViewLux installation partner, which means you get genuine product backed by an install team trained to AAMA standards, not a subcontracted crew guessing at the details. If you’re planning a remodel in Willow Glen, Almaden Valley, or up in the East Foothills, call (669) 333-7786 and we’ll price your project accurately the first time.

Call (669) 333-7786

Product Overview – VLX 138 Panoramic Sliding Door

This is the door you spec when the view is the point. The VLX 138 Panoramic Sliding Door sits in that narrow space between a window wall and a movable door system, giving you both. The frame proportions keep sightlines honest: a profile width of 1.535 inches means the aluminum disappears into the opening instead of boxing it in. Panels can span up to 36 feet wide, which covers most great-room openings in San Jose without a center post interrupting the view of the Santa Cruz Mountains.

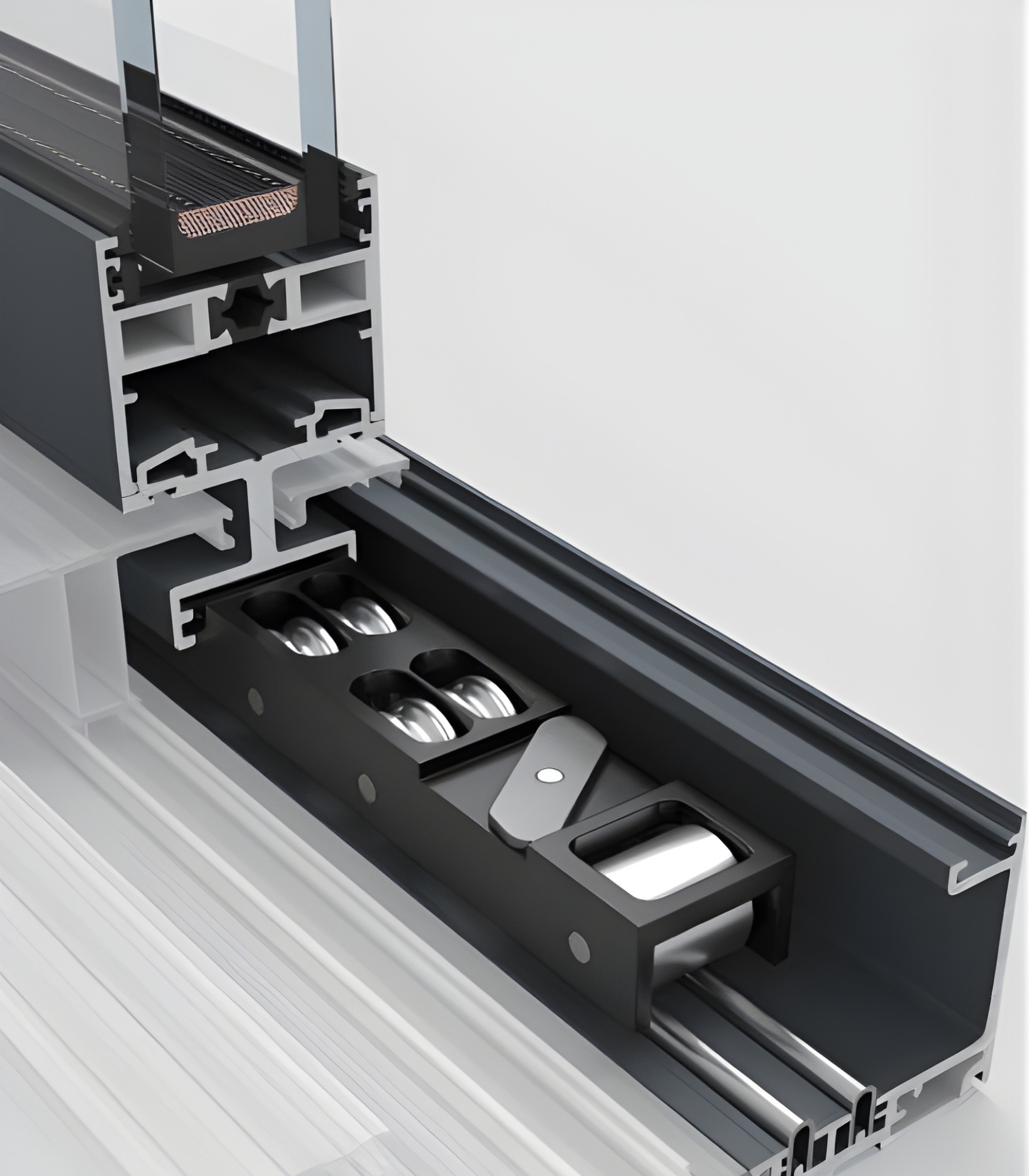

The engineering underneath matters as much as the glass. Panels ride on stainless steel bearings, so a 400-pound door moves with two fingers. We’ve installed these in Eichler remodels in Fairglen and new builds in Silver Creek, and the reaction is the same every time: people expected a heavy commercial feel, and got something residential and quiet instead. The hardware is recessed, the track tolerances are tight, and the materials are chosen to survive years of daily use without sagging or binding. ViewLux builds this line for architects and homeowners who will not compromise on either clarity or longevity.

Technical Specifications

• Wall thickness: 0.138-inch extruded aluminum
• Profile width: 1.535 inches
• Maximum span: Up to 36 feet wide
• Track configurations: 2-Track, 3-Track, 4-Track
• Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen, Sliding Screen

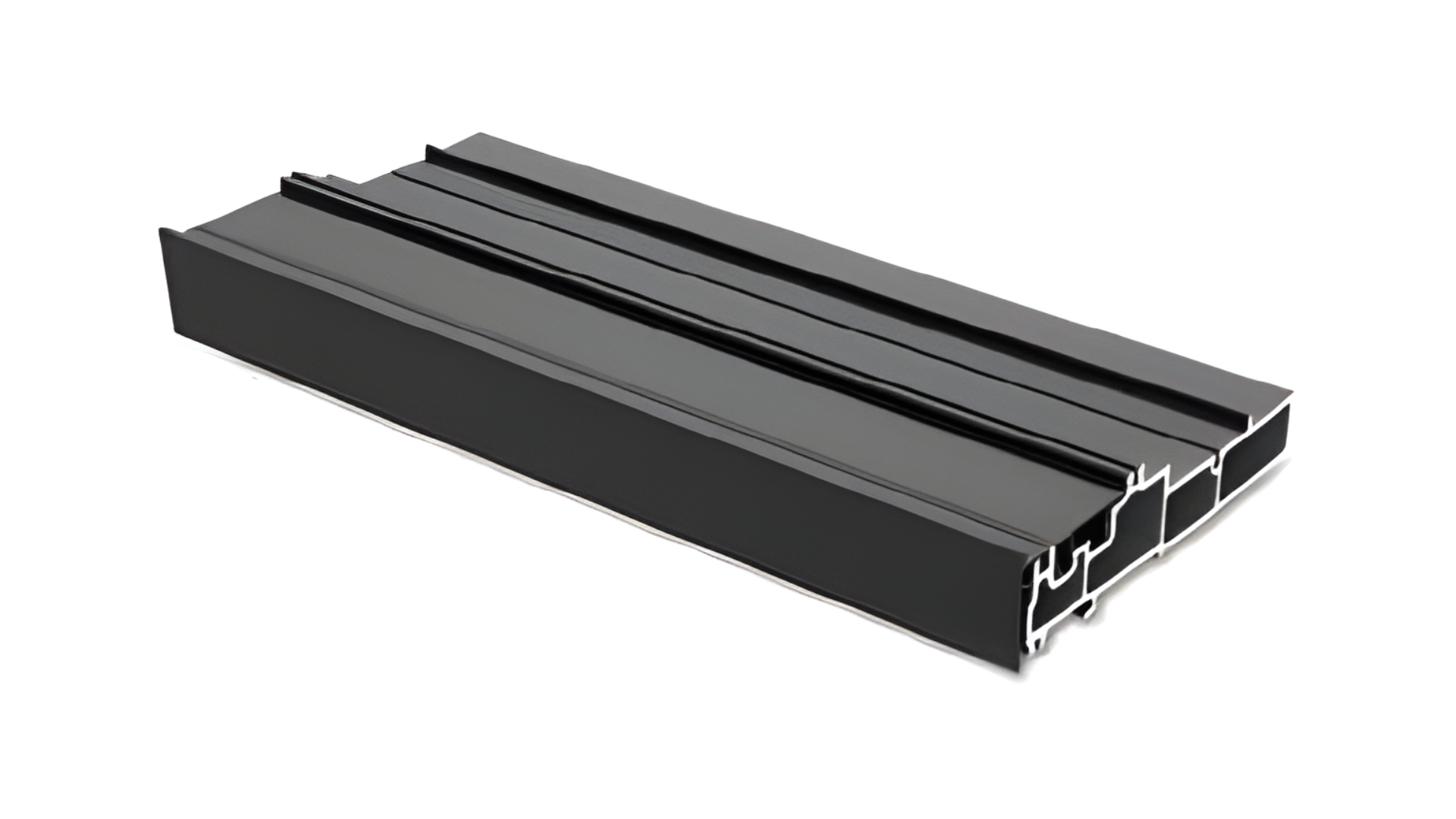

• Sill options: Flush Sill, Low-Profile Sill, Recessed Sill
• Thermal performance: Thermal break technology, NFRC-rated
• Installation standard: AAMA 2400/2410 compliant
• Perimeter seal: AAMA 812 low-expansion foam
• Glass upgrade: Impact-resistant laminated option available

Performance Features

Thermal Efficiency

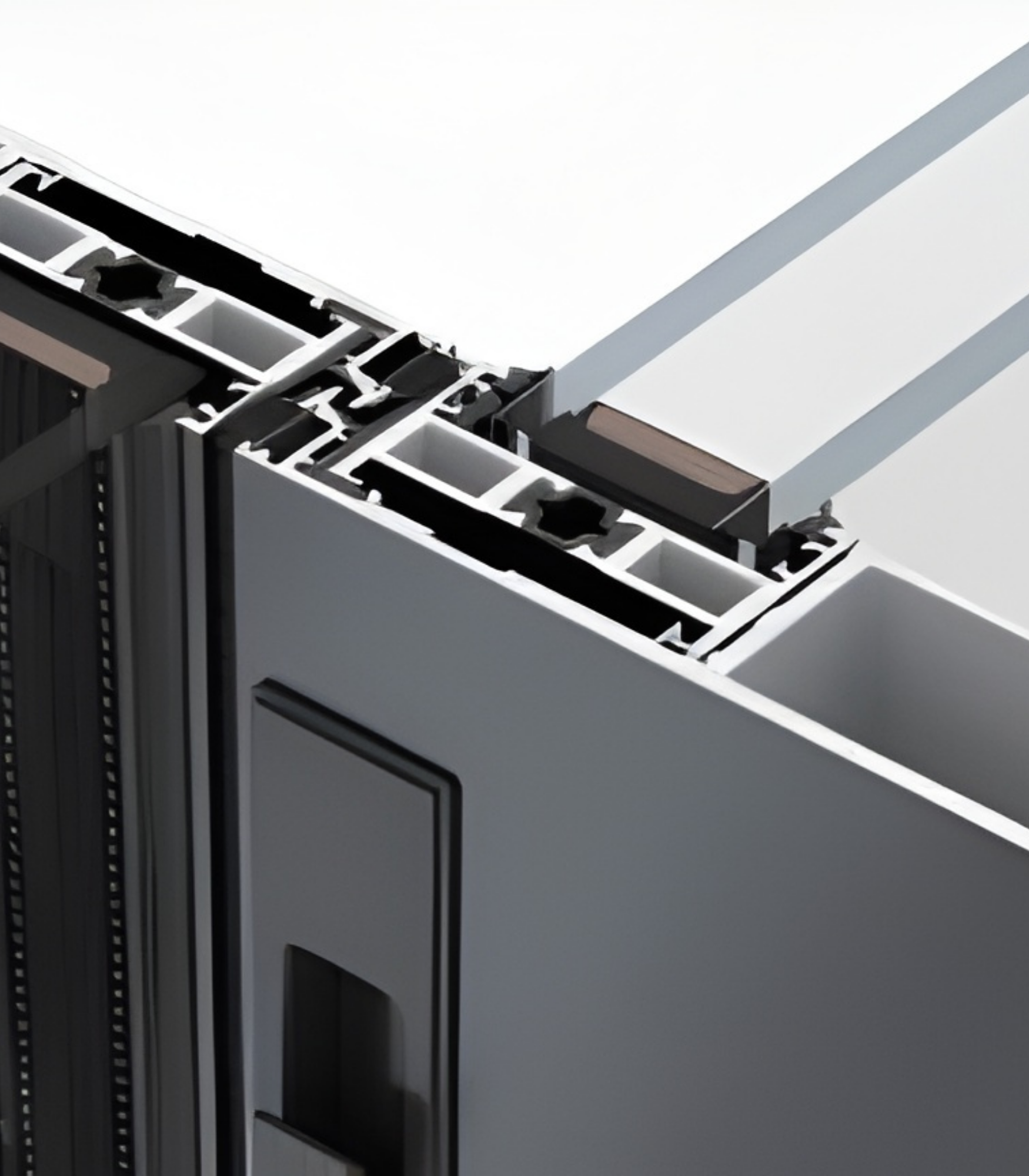

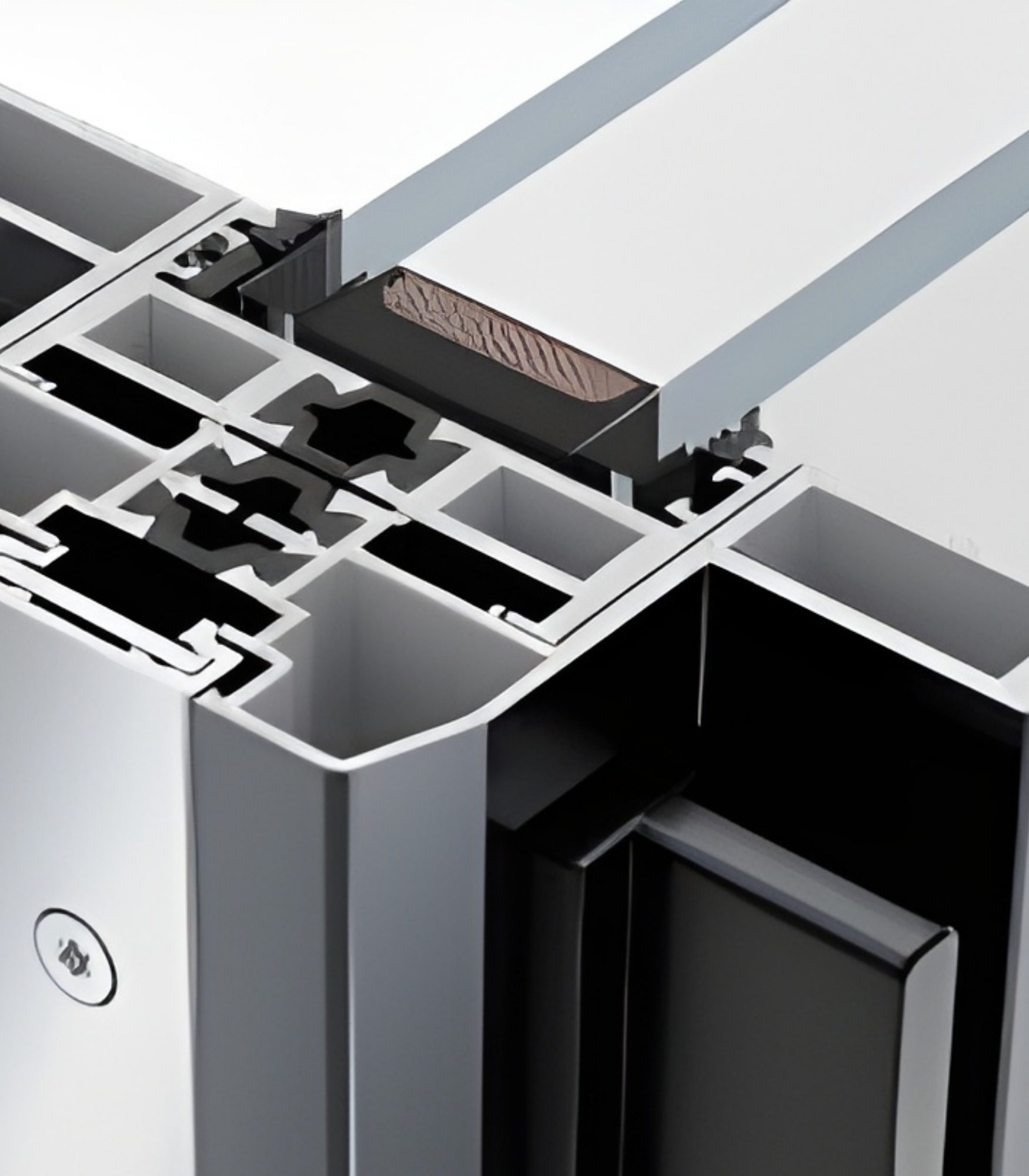

The VLX 138 uses a polyamide thermal break that separates the interior and exterior aluminum, cutting heat transfer through the frame. Combined with Low-E glass, this system is NFRC-rated and holds its own against the summer heat that hits San Jose’s west-facing rooms hardest.

Acoustic Performance
If you live near Highway 85, 280, or the San Jose airport flight path, this matters. Laminated glass options and tight perimeter sealing drop exterior noise noticeably. We tell clients to close a beta door with laminated glass, and you’ll hear the difference before you’ve walked halfway across the room.

Airtightness & Weather Seal

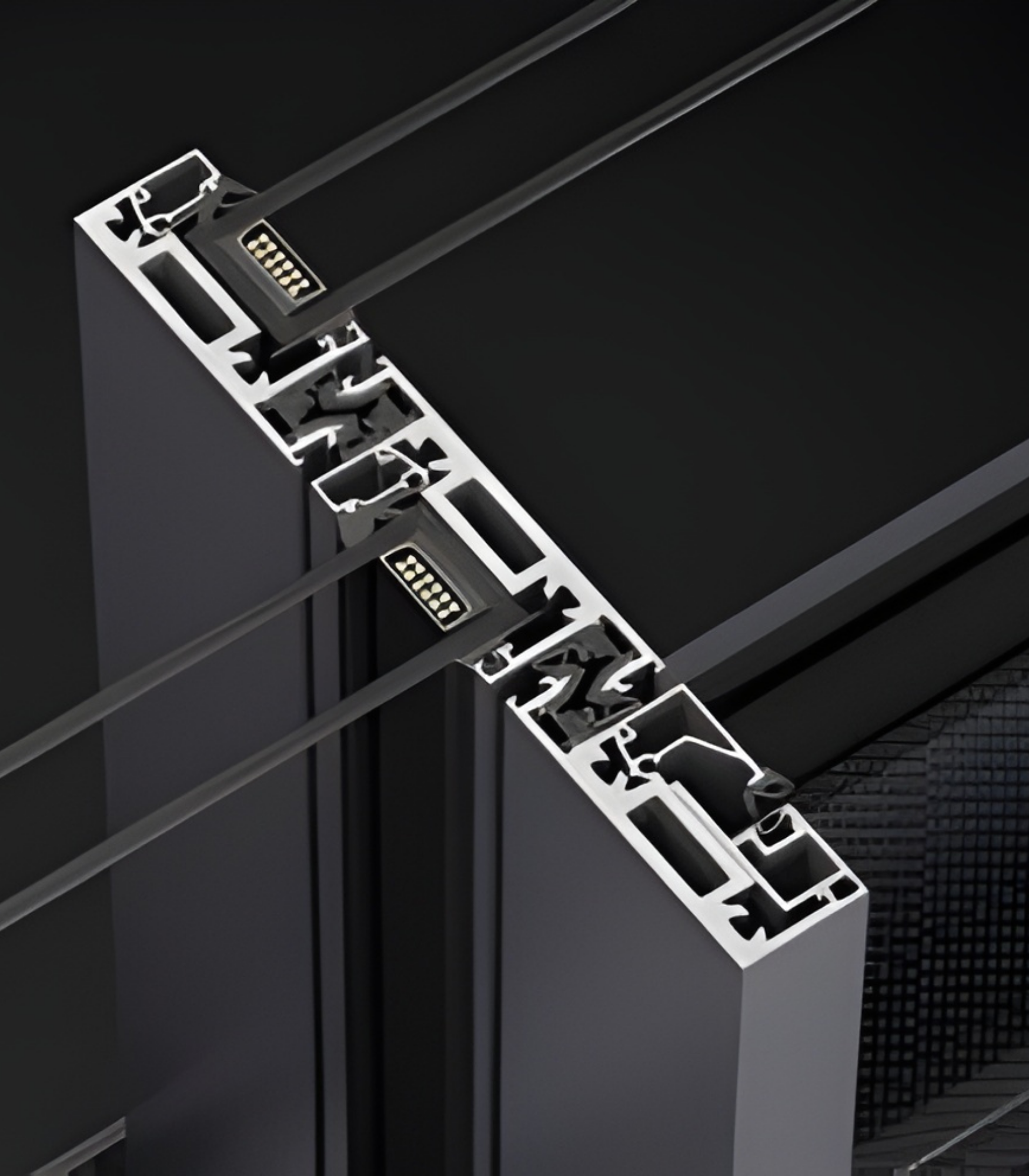

Every perimeter joint is sealed with AAMA 812 low-expansion foam, and the panel interlock points use compression gaskets that hold their shape over time. The result is a door that doesn’t whistle when the wind picks up off the bay.

Waterproofing
San Jose gets rain in bursts. The VLX 138’s sill options, recessed, low-profile, or flush, all channel water out and away through an internal drainage path rather than relying on a single gasket in harm’s way. Proper sill pan flashing during install is mandatory, which is a non-negotiable part of how Westlight Windows San Jose installs them.

Wind Resistance
The system is wind-load rated to meet local climate requirements. That means engineered for the gusts that roll through the valley in late fall and the microclimate pressure differences you get in hillside homes. Your engineer gets the numbers they need for permit submittal from us without a chase.

Security & Hardware

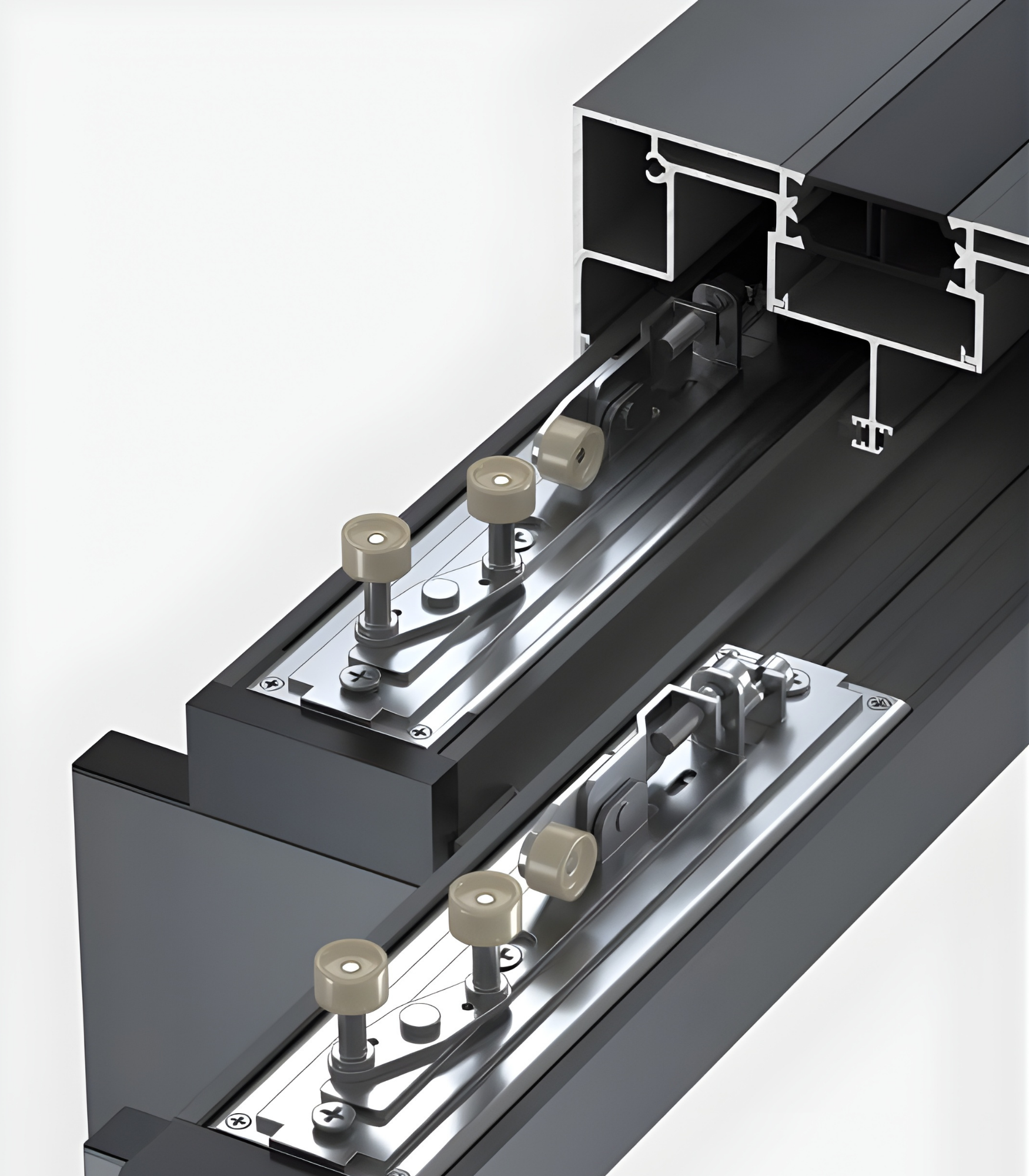

Multi-point locking is standard, not an add-on. The stainless steel bearing carriages are load-tested beyond the maximum panel weight. You get a door that moves like it’s weightless and locks like a vault.

Color & Glass Options

You’re not limited to an anodized silver door on a mid-century house. Premium Black and Bronze sit naturally on modern farmhouse and industrial exteriors you see in San Jose’s rebuilt neighborhoods. Pure White suits coastal-style and traditional homes. Anodized Silver is the quiet default that disappears into any setting. Champagne and Teak Wood finishes are for homeowners who want the aluminum to read as a design feature rather than a frame. All finishes are baked or anodized at the factory so you’re not repainting in five years.

Glass selection changes both comfort and privacy. Clear glass gives you the truest view. Low-E is the workhorse for west and south exposures, cutting solar gain without darkening the room. Frosted or Obscure glass works for bathrooms, bedrooms, or any opening where you want light without sightlines from a neighboring property. Black Tint and Gray Tint suit modern elevations and reduce glare. Every glass option except Frosted and Obscure is available in a laminated, impact-resistant construction.

Installation by Westlight Windows San Jose in San Jose

An aluminum sliding door of this span and weight will punish a sloppy install. The panels are milled to tight tolerances, and if the opening is out of square by even a fraction of an inch, the door will bind, leak, or fail its warranty inspection. That’s not a hypothetical. We have repaired doors installed by general contractors who set the frame in a rush and never pulled a string line. The door paid for it.

Our process starts with a pre-install inspection and laser check of the rough opening. We verify the structural header, the substrate condition, and any water intrusion around the existing opening before any new materials are ordered to the job site. The frame gets set level, plumb, and square, with shimming where needed and no drywall screws hidden as anchors. Exactly per AAMA 2400/2410. Every perimeter joint is sealed with AAMA 812 low-expansion foam, then the sill and head flashings go in. We run a final water test, adjust the panel alignment until the glide is one-handed smooth, and clean the opening so the first thing you see is the glass, not our mess. Call (669) 333-7786 if you want this done once, correctly.

Frequently Asked Questions – VLX 138 Panoramic Sliding Door

Get a Quote – VLX 138 Panoramic Sliding Door in San Jose

Get a firm number for your opening before you commit to the remodel that depends on it. We’ll come out, laser-measure, and give you a written line-item quote with no change orders later. Call Westlight Windows San Jose at (669) 333-7786 to schedule your free on-site measurement for the VLX 138 Panoramic Sliding Door.

Written by the team at Westlight Windows San Jose, authorized ViewLux installation partner serving San Jose, CA and the surrounding South Bay.
