VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in San Jose, CA | Westlight Windows San Jose

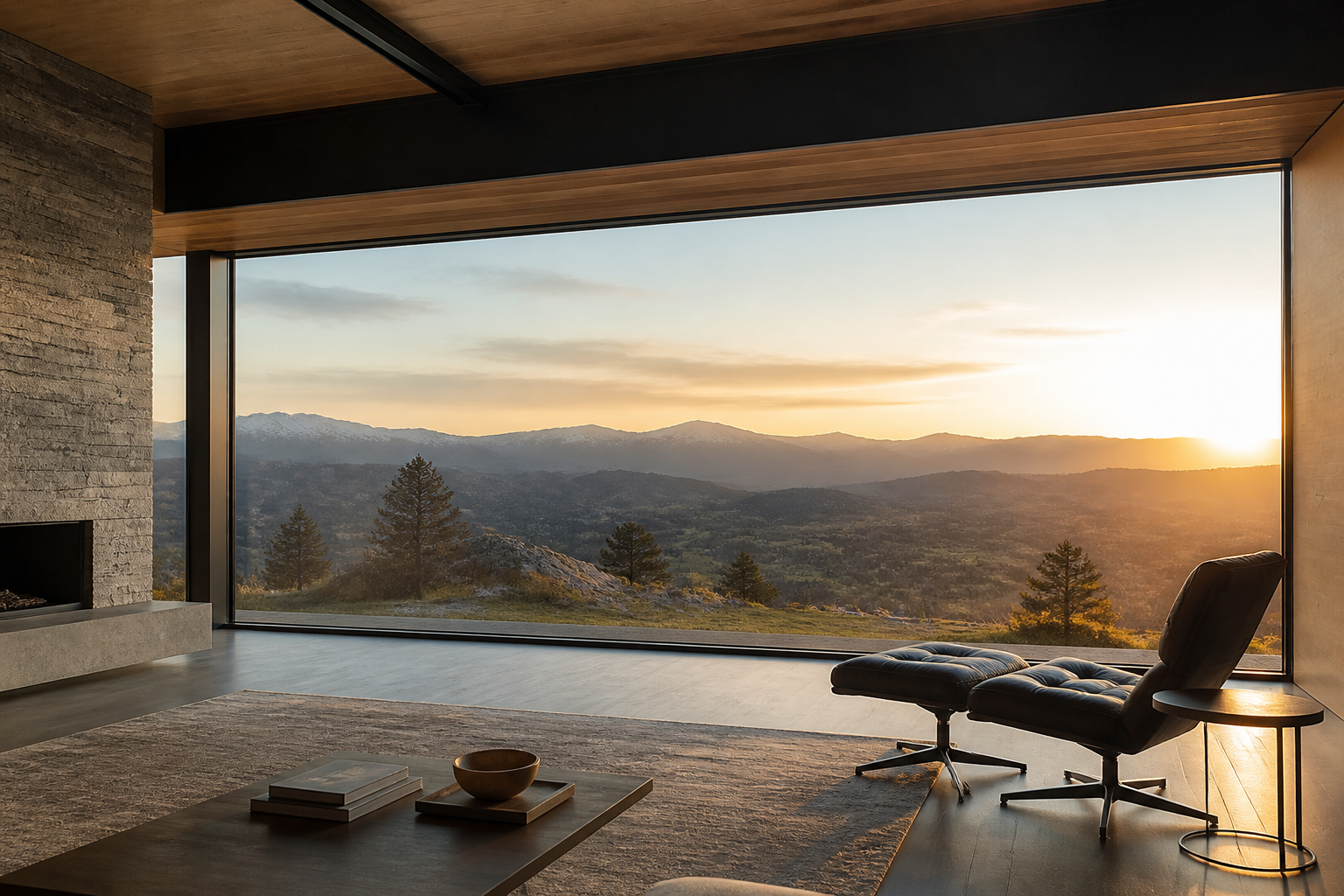

The VLX 80 Fixed / Picture Window is what you choose when the view matters more than anything else. This is a non-operable, maximally glazed aluminum frame window built to stretch up to 120 inches wide, which means floor-to-ceiling glass with almost no frame interrupting what you’re looking at. Around San Jose, we see this window going into Eichler renovations in Willow Glen, hillside homes in Silver Creek with valley views, and modern builds in North San Jose where homeowners want daylight without a single piece of visible hardware. Westlight Windows San Jose is an authorized ViewLux installation partner, which means you get the product installed by the installers the manufacturer trusts with it. Call us at (669) 333-7786 to talk through your project, or keep reading for the full picture.

Call (669) 333-7786

Product Overview – VLX 80 Fixed / Picture Window

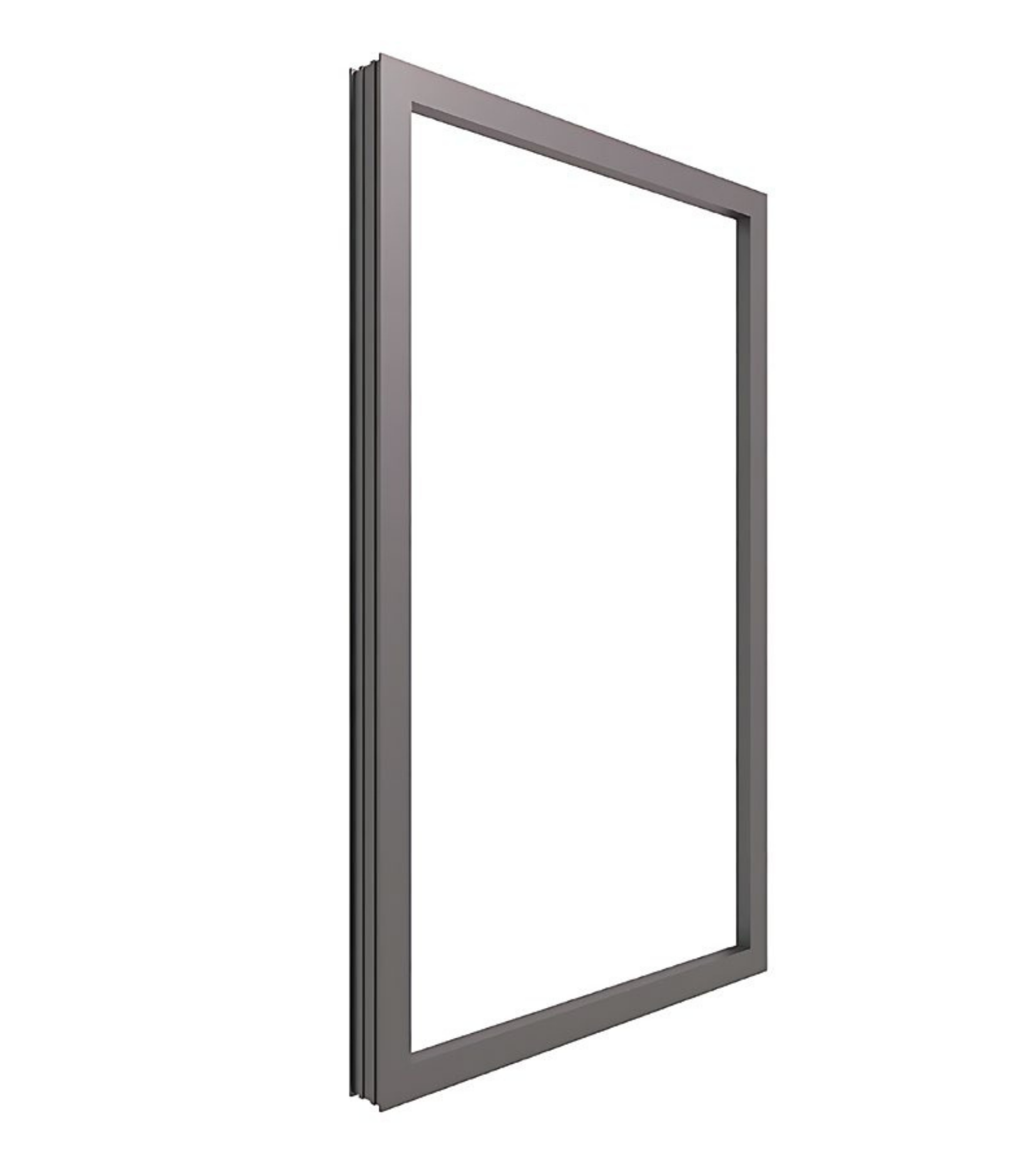

The VLX 80 Fixed / Picture Window is the answer to a simple question: how much glass can you put in a wall before the frame starts taking over? The answer, with this product, is more than you’d expect. The profile itself is only 1.97 inches wide, which is nearly nothing when you look at the overall opening. On a 10-foot span that means over 95% of the opening is glass, not metal. Zero visible hardware, no crank, no sash, no latch. Just a clean aluminum perimeter and whatever’s outside your house.

Architecturally, this window earns its keep in three situations. First, as a statement piece in a great room or living area where a standard window feels too small for the wall. Second, as part of a multi-panel fixed window wall, often paired with sliding or casement units from the same ViewLux series. Third, in tight spaces where an operable window would hit something when it opened. A picture window never moves, so it works where an awning or casement would fight with furniture, cabinetry, or a walkway.

The frame itself uses aluminum with a wall thickness of 0.079 inches. That’s thicker than what you’ll find on entry-level aluminum windows, and it matters for long-term flatness on wide spans. Aluminum that’s too thin deflects, and deflection shows up as distorted reflections in the glass. This one is engineered to stay straight. For San Jose homeowners, that means the window you install in 2026 still looks square in 2046. We recommend this product regularly for homes in the Rose Garden and Naglee Park neighborhoods where traditional curb appeal matters just as much as what you see from inside. Call (669) 333-7786 and we’ll show you what the VLX 80 looks like in a sample opening.

Technical Specifications

Here’s the raw spec sheet, reworded in plain language so you know exactly what you’re buying:

• Profile width: 1.97 inches of visible aluminum at the perimeter
• Aluminum wall thickness: 0.079 inches
• Maximum span per unit: 120 inches wide, which covers most single-opening picture window applications without needing a mullion splice
• Operation: Fixed, non-operable, zero hardware
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Frame finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Performance compliance: NFRC-rated thermal performance, AAMA 2400 and 2410 installation standards, AAMA 812 low-expansion foam sealant at perimeter joints
• Additional options: Impact-resistant laminated glass for enhanced security and code compliance in vulnerable locations

What’s not on the list is just as important. There’s no visible latch, no sash, no drain holes on the front face, and no hardware that can tarnish or catch lint. The product is designed so everything functional is hidden inside the frame or behind the glass. That’s what makes a picture window a picture window.

Performance Features

Thermal Efficiency – Aluminum conducts heat, which is why the VLX 80 uses a thermal break inside the frame. That break separates the interior and exterior aluminum so the frame doesn’t act like a radiator in summer or a heat sink in winter. It’s NFRC-rated, so you can compare actual U-factor and SHGC numbers instead of taking our word for it.

Acoustic Performance – San Jose has real noise. Caltrain horns near Diridon, 280 traffic in the Rose Garden area, plane noise under the SJC flight path. Laminated glass makes a measurable difference in sound transmission, and we regularly spec it for picture windows facing busy corridors. This window’s rigid frame design also means fewer rattle points, so what you hear from the window itself is almost nothing.

Airtightness & Weather Seal – A fixed window has an advantage over an operable unit: no moving parts to leak air through. The VLX 80’s perimeter seal is continuous around all four sides. Westlight Windows San Jose installs every unit with AAMA 812 low-expansion foam sealant on all perimeter joints, which is the difference between a window that’s sealed and a window that just looks sealed from the living room.

Waterproofing – Water intrusion in a leaking window usually happens at the installation perimeter, not through the glass. We install to AAMA 2400 and 2410 standards, which include proper sill flashing, drainage plane integration, and corner sealing. We also run a water test on every picture window install before we call the job done.

Wind Resistance – The VLX 80 carries a wind-load rating sized for local code requirements. San Jose’s exposure varies from sheltered valley lots to hillside ridges that catch the afternoon wind off the Santa Cruz Mountains. We verify required design pressure ratings for your specific site before ordering, so you’re not guessing whether the window meets the building department’s expectations.

Security & Hardware – The lock on a fixed window is the window itself. Glass is the only access point, and we can supply that glass in laminated or tempered configurations. Laminated glass holds together under impact, which means someone breaking through has to work much harder, and it’s also the right choice for large-format glass near walkways or doors where safety glazing codes apply.

Color & Glass Options

Six frame finishes cover most of the design vocabulary we see in San Jose homes. Premium Black is the current default for modern builds and remodeled Eichlers, especially paired with dark window walls and industrial-style interiors. Pure White fits the traditional stucco ranchers that dominate neighborhoods like Cambrian and Almaden Valley. Anodized Silver is the honest, metal-forward look that reads as contemporary without leaning into the black-frame trend. Bronze and Champagne are the middle ground, warmer than silver and softer than black, and they hold their own on mid-century homes in the San Jose area. Teak Wood is a specialty finish for homeowners who want the warmth of wood grain with the maintenance profile of aluminum.

Glass selection depends on where the window faces. Low-E is the San Jose default for any side of the house that gets afternoon sun, because cooling season runs long here. Gray Tint and Black Tint come in for glare-heavy western exposures and shower doors. Frosted makes sense for street-facing picture windows where you want daylight without putting your living room on display. Clear glass is the purest look when maximum light transmission is the whole point. Laminated or tempered primarily serve code compliance and safety, with the side benefit of better sound control. We’ll walk you through glazing options room by room when you call (669) 333-7786 for a quote.

Installation by Westlight Windows San Jose in San Jose

An expensive window installed poorly is a warranty claim waiting to happen. What most homeowners don’t realize is that the manufacturer’s warranty on the VLX 80 covers product defects, not installation errors. If water gets in because the flashing was wrong, the leak isn’t a ViewLux problem. It’s an installer problem. That’s why Westlight Windows San Jose is an authorized ViewLux installation partner, not a generic contractor who happens to sell a window line on the side.

Our installation process for the VLX 80 Fixed / Picture Window starts before we order anything. We measure the opening in person, check the rough opening dimensions against the load path, and verify the design pressure requirements for your specific San Jose address. When we set the frame, we level it, plumb it, and square it. A fraction of an inch out of square at install turns into visible racking across a 120-inch span, especially on a picture window with no break in the glass line to hide the error.

We seal every perimeter joint with AAMA 812 low-expansion foam. The foam is the air and water barrier school; it expands to fill the gap but won’t bow the frame like a urethane foam would on a narrow aluminum profile. We then install to AAMA 2400 and 2410 standards, which means proper window flashing, sill pan where the opening calls for it, and integration with your existing weather barrier. After the window is set, we run a water test on the perimeter and inspect from the exterior before we caulk and trim. Only then do we call the job complete.

San Jose building requirements add one more layer. Depending on your home’s age, the window may need to meet the current Title 24 energy standards for replacement windows, and on homes where the glass sits near a door or along a walking surface, safety glazing rules come into play. We handle the permit and inspection coordination if your project needs it, so you’re not stuck learning building code on a Saturday afternoon.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

Get a Quote – VLX 80 Fixed / Picture Window in San Jose

The VLX 80 Fixed / Picture Window is a product worth seeing in person before you commit, and we’ll bring the samples to you. Call Westlight Windows San Jose at (669) 333-7786 to schedule a free on-site measurement. We’ll come out, measure your openings, walk through glass and finish options, and give you a written line-item quote. You’ll know exactly what you’re paying and when it’ll be installed.

Written by the team at Westlight Windows San Jose, serving San Jose, CA as an authorized ViewLux installation partner.
