VLX 100 Bifold / Folding Door

VLX 100 Bifold / Folding Door in San Jose, CA | Westlight Windows San Jose

The VLX 100 Bifold / Folding Door is an accordion-style aluminum door system that folds panel by panel to open an entire wall. Homeowners in San Jose choose it when they want their living room, dining area, or kitchen to flow directly into the backyard without a fixed post or narrow doorway in the way. As an authorized ViewLux installation partner, Westlight Windows San Jose supplies, installs, and supports this exact hardware throughout San Jose and surrounding neighborhoods like Willow Glen, Almaden Valley, Rose Garden, and Evergreen. Call (669) 333-7786 to talk about your opening size, panel count, and finish options.

Product Overview – VLX 100 Bifold / Folding Door

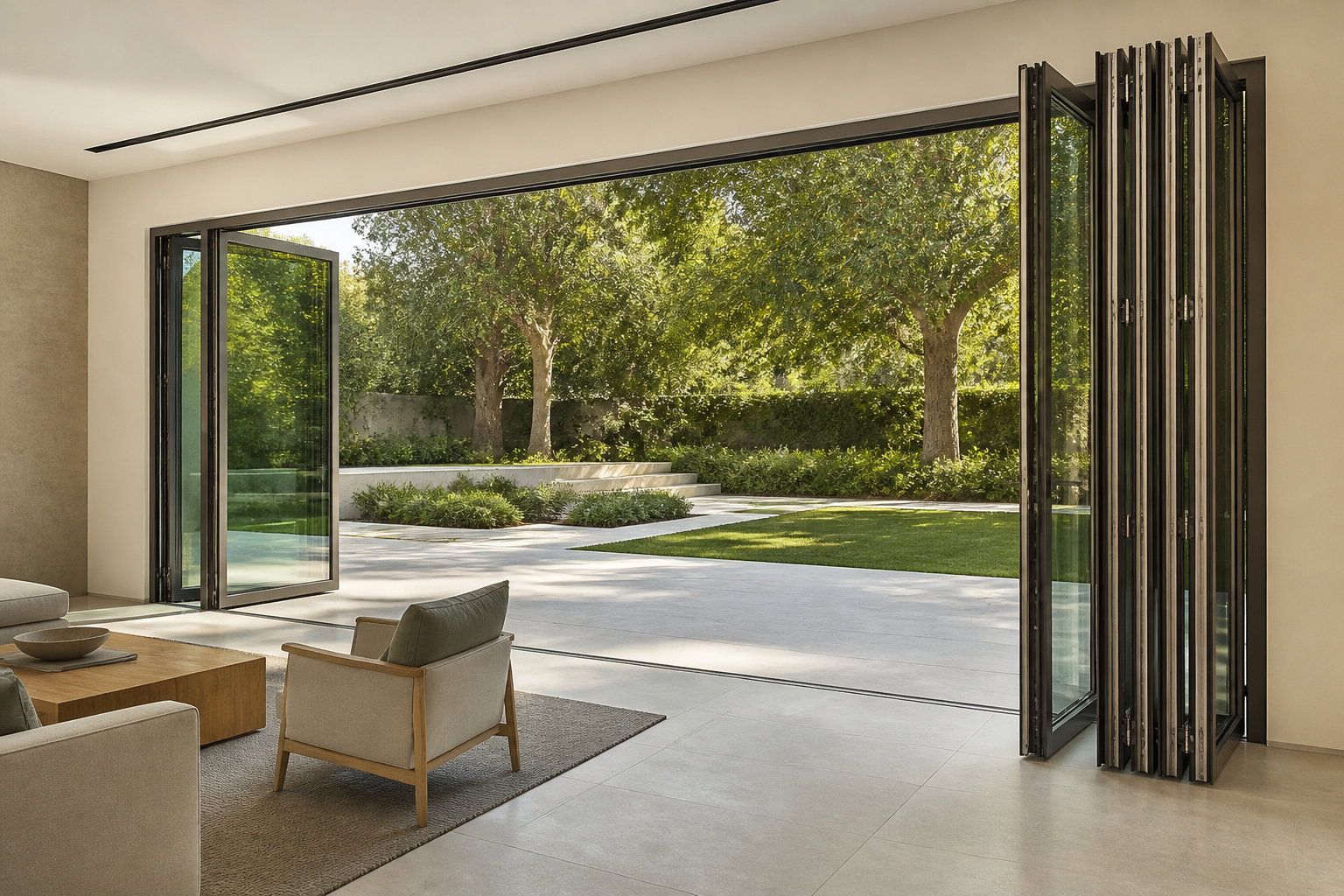

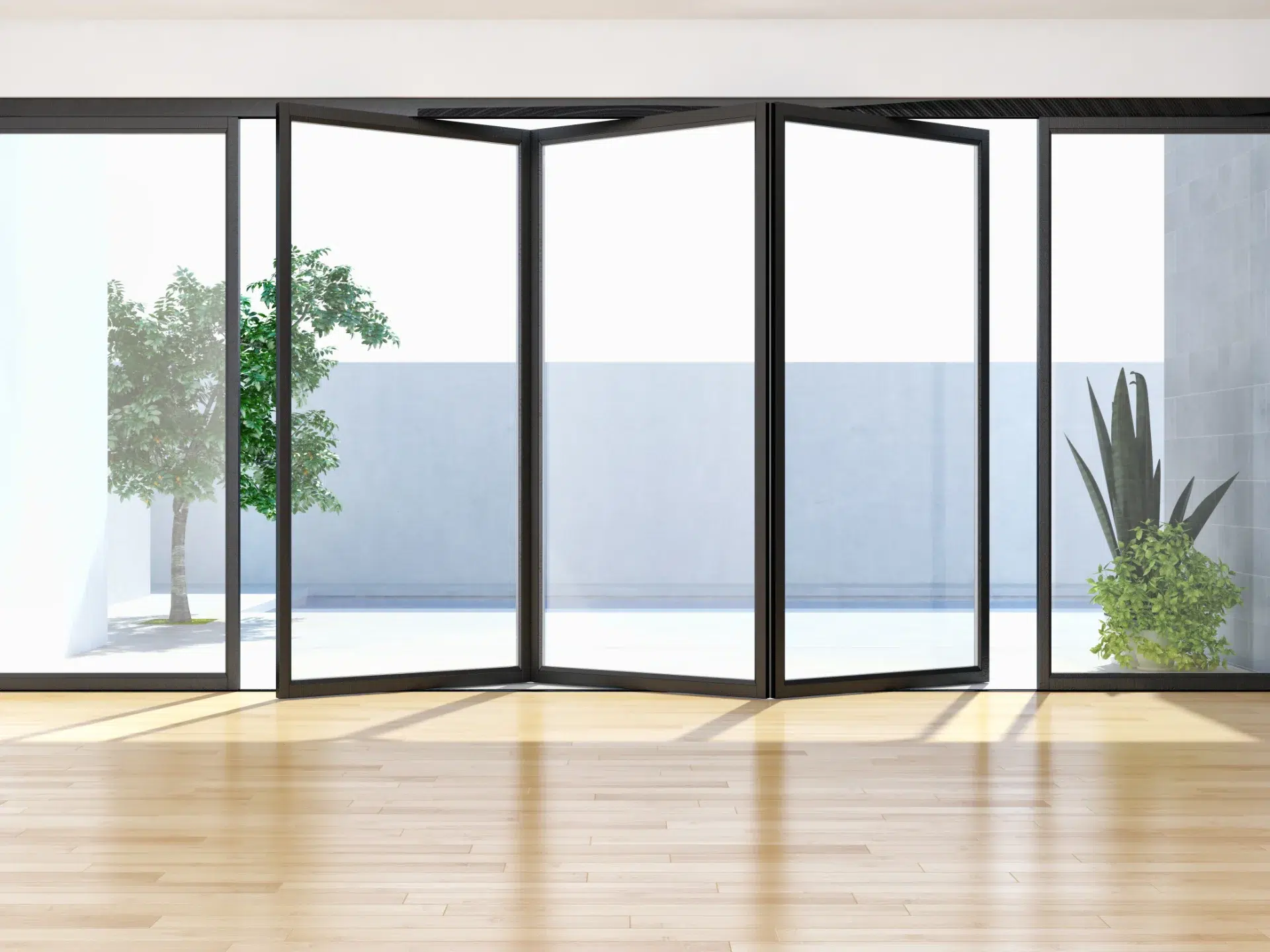

The idea behind this door is simple: when closed, it’s a full wall of glass with narrow sightlines. When open, it disappears. The panels hinge and fold flat against one another, stacking neatly to the left or right of the opening. That’s what makes it different from a sliding door, which always leaves at least one fixed panel occupying part of the opening.

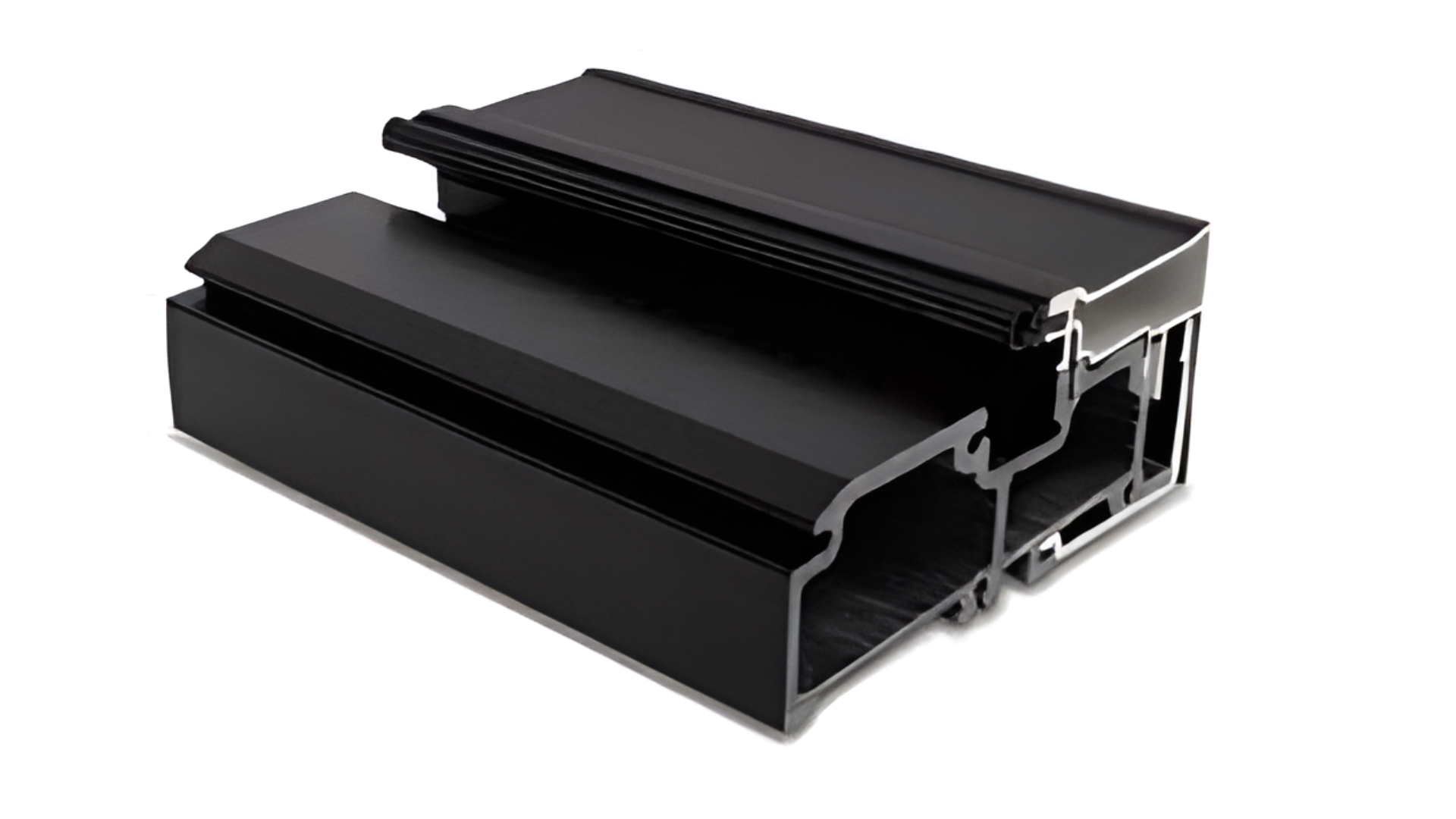

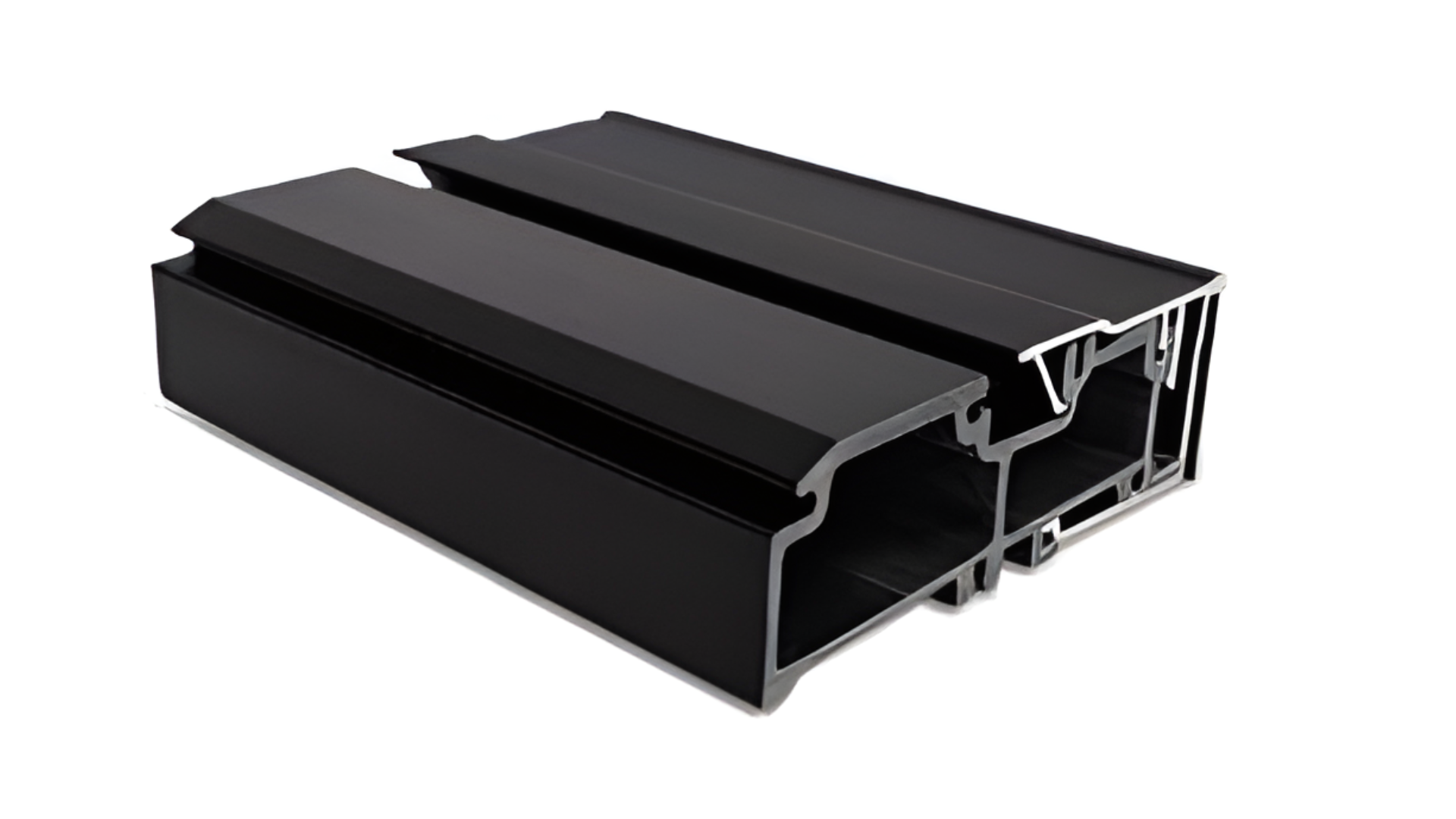

The VLX 100 is built around an aluminum frame with a wall thickness of 0.098 inches and a profile width of 2.56 inches. That’s a substantial extrusion. It gives each panel the stiffness to hold large glass panes without sagging or twisting over time, even on a 20-foot-wide opening here in San Jose, where afternoon heat can punish poorly engineered aluminum.

In the Willow Glen neighborhoods full of mid-century ranch homes getting indoor-outdoor remodels, this door solves a specific problem: the back wall facing the yard becomes optional. You fold the panels open for a summer evening and close them up when the marine layer rolls in. The track configurations run from 2 panels up to 6 panels, so a small patio door can grow into a full wall-to-wall opening without changing product lines.

Westlight Windows San Jose carries this series because ViewLux manufactures to a standard that holds up under daily use. The hinges, rollers, and locking hardware are designed for repetition. This is not a door you adjust once and hope for the best. It’s a load-bearing moving wall, and the engineering reflects that.

Technical Specifications

The table below lists the core specifications for the VLX 100 Bifold / Folding Door as installed by Westlight Windows San Jose. These numbers come from the manufacturer’s published product data for this series.

• Wall thickness: 0.098-inch aluminum extrusion
• Profile width: 2.56 inches
• Maximum span: Up to 20 feet wide
• Track configurations: 2-Panel, 3-Panel, 4-Panel, 5-Panel, or 6-Panel runs
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen or None
• Performance: Thermal break technology, NFRC-rated energy performance, AAMA 2400/2410 installation standard compliance, AAMA 812 low-expansion foam on all perimeter joints
• Ratings: Airtightness, waterproofing, mist prevention, and sound control ratings per AAMA and NFRC test standards
• Wind-load: Rated for San Jose climate requirements

Performance Features

Thermal Efficiency
The VLX 100 uses a thermal break inside the aluminum extrusion. That break stops heat from traveling through the metal frame into your home during San Jose’s 90-degree summer days. NFRC-rated performance means the energy numbers are independently verified, not marketing language. For Low-E glass configurations, the combination keeps cooling bills in check while meeting California energy code expectations.

Acoustic Performance
Aluminum is dense, and a properly sealed multi-panel wall outperforms typical wood or vinyl doors for sound reduction. Westlight Windows San Jose installs the VLX 100 with AAMA 812 low-expansion foam on every perimeter joint, which closes the small gaps where exterior noise sneaks in. If your home faces a busy San Jose street like Camden Avenue or Winchester Boulevard, laminated glass adds another meaningful layer of sound dampening.

Airtightness & Weather Seal
The panels lock into place against full-height weatherstripping. AAMA 2400/2410 installation compliance means the door is installed level, plumb, and square so the seals make consistent contact across the entire opening. A door that is even slightly out of square will leak air. That’s an installation problem, and it’s the most common reason bifold doors fail performance tests in the field.

Waterproofing
The perimeter joints are sealed with AAMA 812 low-expansion foam and a continuous sill pan detail. In San Jose, winter rains arrive fast and come down hard for a few days at a time. The threshold design routes water outward and away from the interior floor. Westlight Windows San Jose performs a water test on every completed install before we call the job done.

Wind Resistance
The VLX 100 is rated for local wind-load requirements, which matters in exposed hillside areas like the East Foothills and Almaden Valley. Panels are reinforced through the interlocking system, and with a 20-foot opening the end panels anchor into reinforced framing. Laminated glass adds structural stiffness as well as impact resistance.

Security & Hardware
Multi-point locking hardware is standard on the lead panel. The handles and hinges are stainless steel and built for daily use, not occasional patio-door duty. With laminated glass installed, this door also provides a genuine barrier against forced entry, an important consideration for San Jose homes where a wall of glass faces the street or an alley.

Color & Glass Options

Finish choices set the tone for the entire rear wall. Premium Black is the current favorite in San Jose for modern and contemporary homes, where a dark frame reads as a crisp outline against stucco or white interior walls. Pure White works well in Spanish Colonial and ranch-style homes that want the door to blend into existing trim. Anodized Silver has a machined, raw aluminum look that suits industrial and loft-style spaces. Bronze and Champagne land somewhere between warm and formal, popular in Bay Area homes with natural wood floors and stonework. Teak Wood is a wood-grain finish on aluminum, giving you the warm appearance of wood with zero maintenance and no warping in San Jose’s dry summer heat.

On the glass side, Clear is for maximum visibility and unfiltered light. Low-E adds a coating that reduces heat gain, which is what most San Jose homeowners choose for west-facing walls. Tempered glass is safety glass, required by code in doors. Laminated glass adds security and sound reduction by bonding two panes with an interlayer. Gray Tint and Black Tint reduce glare and solar heat without changing the frame color, useful for south-facing openings that take direct sun from mid-morning through late afternoon.

Installation by Westlight Windows San Jose in San Jose

A bifold door is a moving structural wall. The installation has to be right. Westlight Windows San Jose installs the VLX 100 to AAMA 2400/2410 installation standards, which are the governing guidelines for proper fenestration installation in residential buildings. We do not shortcut the process.

Every project starts with a pre-install inspection of the opening. We measure the rough opening in three places across the width and height, check the floor for level, and verify the header. If the opening is out of tolerance, we flag it before the door arrives, not after. Moving to the install, the frame is set level, plumb, and square, with shims driving backup support at every anchor point. A door that is out of square by even an eighth of an inch will not seal properly, and the panels will bind.

Once the frame is anchored, we seal the entire perimeter with AAMA 812 low-expansion foam. That foam expands into every crevice without warping the frame, closing off air and water penetration paths that are invisible after trim goes up. The sill gets a continuous pan flashing detail to direct any infiltrated water outward. Then we hang the panels, adjust each hinge and roller, and verify the lock engagement.

After the door is fully set, we run a water test on the exterior. If any water gets through, we find out before your floor does. We finish with a full cleanup and walk you through how the panels operate, lock, and fold.

San Jose’s climate is mild but not forgiving. We deal with stucco walls from mid-century builds, out-of-level floors in older homes, and the occasional termite damage discovered inside the rough opening. The ViewLux warranty requires installation by an authorized partner using their specified procedures. Improper installation voids that warranty. Hiring Westlight Windows San Jose is the difference between a door that works for decades and one that binds, leaks, and needs a service call every year.

Frequently Asked Questions – VLX 100 Bifold / Folding Door

What is the lead time for the VLX 100 Bifold / Folding Door?

Lead time for the VLX 100 typically runs 6 to 10 weeks from final measurement and finish selection, depending on panel count and glass type. Custom sizes and specialty finishes can push that out further. Call (669) 333-7786 and we’ll confirm current production timelines for your exact configuration.

Does the VLX 100 qualify for energy tax credits?

The VLX 100 is NFRC-rated and uses thermal break technology, which means certain glass and opening configurations may qualify for available energy incentives under current California and federal programs. Eligibility depends on the specific glass package and your home’s overall performance. We can provide NFRC documentation for your configuration when you get a quote.

What warranty comes with the Bifold / Folding Door?

ViewLux provides the manufacturer’s warranty on the VLX 100, and that warranty remains valid when the door is installed by an authorized partner using the manufacturer’s specified procedures. Westlight Windows San Jose is an authorized ViewLux installation partner. We also stand behind our installation with our own workmanship coverage. Call (669) 333-7786 for full warranty details for your project.

Can I customize the size?

Yes. The VLX 100 is not a stock-sized product. Each door is fabricated to the exact opening dimensions of your San Jose home, up to a maximum span of 20 feet wide. Panel count, panel direction, finish, glass type, and hardware configuration are all selected per project. That’s why the final measurement is such an important step before production begins.

How do I maintain aluminum frames?

Wait until the door is closed and locked, then wipe the frames with a damp cloth and mild soap, followed by a dry cloth. Keep the bottom track clear of leaves and debris, especially during San Jose’s fall and winter months. Lubricate the hinges and rollers lightly once a year with a dry silicone spray. Avoid abrasive cleaners that can scratch the powder-coated finish. If a panel ever feels stiff or makes noise when folding, call Westlight Windows San Jose before forcing it, which is the fastest way to damage the hardware.

Get a Quote – VLX 100 Bifold / Folding Door in San Jose

If you’re planning a wall-to-wall opening anywhere in San Jose, call Westlight Windows San Jose at (669) 333-7786. We’ll schedule a free on-site measurement, walk you through panel configurations and glass options, and give you a written line-item quote for your exact opening. You’ll know exactly what the door costs, what the install includes, and when we can start.

Written by the team at Westlight Windows San Jose, serving San Jose, CA as an authorized ViewLux installation partner.
